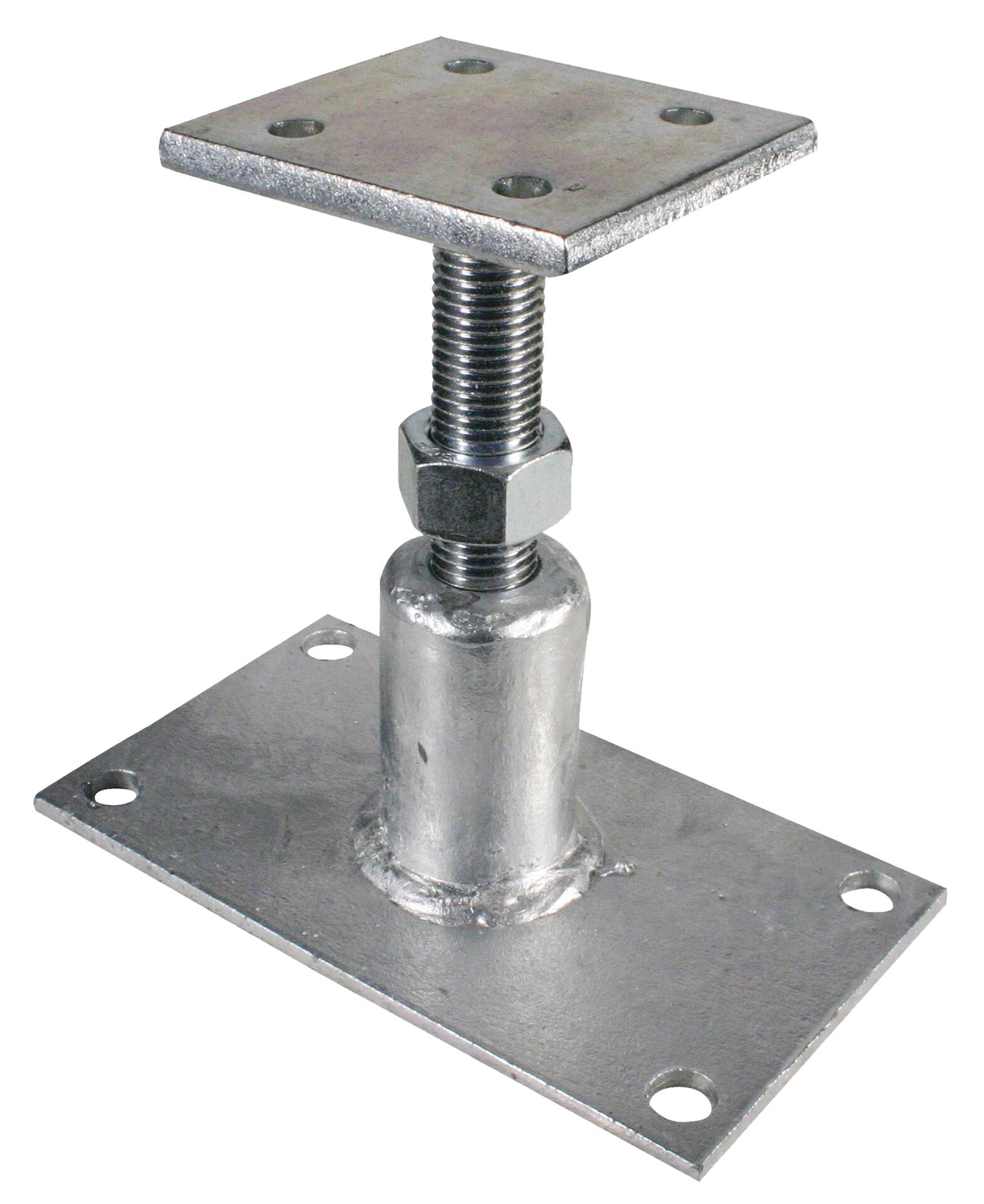

Zur Befestigung auf Beton
Eigenschaften
Anwendungsbereich
- Carports, Eingangsdächer, Anbauten, ...
Technische Daten
Grundhöhe
110 mm
Grundplatte L x B x S
180 x 100 x 5 mm
Grundplatte LA x Ø
4 x 13 mm
Höhe verstellbar
70 mm
Kontermutter Ø / SW
M 22 / 34
Oberfläche
feuerverzinkt
Ø Rohr
42 mm
Trägerplatte L x B x S
90 x 80 x 8 mm
Trägerplatte LA x Ø
4 x 9 mm
Typ
1755
Werkstoff
Stahl
Zulassung
ETA - 16/0550
Technische Daten
Grundhöhe
160 mm
Grundplatte L x B x S
180 x 100 x 5 mm
Grundplatte LA x Ø
4 x 13 mm
Höhe verstellbar
70 mm
Kontermutter Ø / SW
M 22 / 34
Oberfläche
feuerverzinkt
Ø Rohr
42 mm
Trägerplatte L x B x S
90 x 80 x 8 mm
Trägerplatte LA x Ø
4 x 9 mm
Typ
1755
Werkstoff
Stahl
Zulassung
ETA - 16/0550
Technische Daten
Grundhöhe
210 mm
Grundplatte L x B x S
180 x 100 x 5 mm
Grundplatte LA x Ø
4 x 13 mm
Höhe verstellbar
70 mm
Kontermutter Ø / SW
M 22 / 34
Oberfläche
feuerverzinkt
Ø Rohr
42 mm
Trägerplatte L x B x S
90 x 80 x 8 mm
Trägerplatte LA x Ø
4 x 9 mm
Typ
1755
Werkstoff
Stahl
Zulassung
ETA - 16/0550
Mehrwerte
Verarbeitungshinweise
Hinweis
Technische Daten
- Trägerplatte L x B x S: 90 x 80 x 8 mm,
- Grundplatte L x B x S: 180 x 100 x 5 mm,
- Kontermutter Ø / SW: M 22 / 34,
- Typ: 1755,
- Zulassung: ETA - 16/0550,
- Grundplatte LA x Ø: 4 x 13 mm,
- Höhe verstellbar: 70 mm,
- Werkstoff: Stahl,
- Oberfläche: feuerverzinkt,
- Trägerplatte LA x Ø: 4 x 9 mm,
- Ø Rohr: 42 mm,
